Polypropylene 630VDC - Ampohm capacitor polypropylene FP-CA-AU 630VDC 1.0µF

AMPOHM capacitor Polypropylene MKP 630VDC FP-CA-AU 1.0µF
[4447]

Retail Price
5.70€ TTC

Click to enlarge

Ampohm

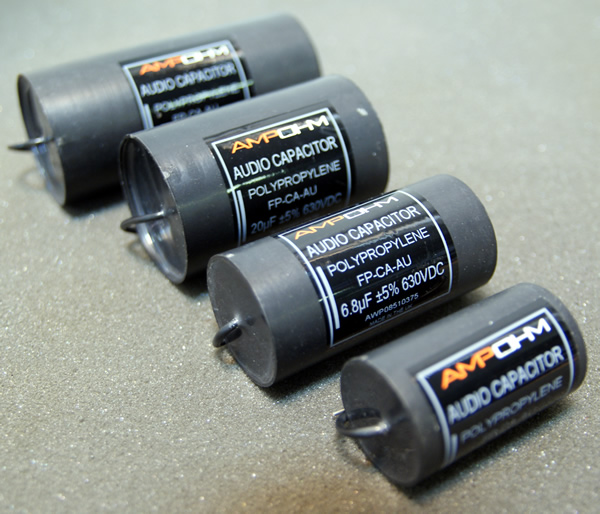

Audio Capacitors MKP 630VDC FP-CA-AU
Polypropylene Metallised

AMPOHM Audio Capacitors are specially designed for high performance audio systems, used in various applications.

The capacitors are hand wound and have their insulated tinned copper leads hand soldered before being assembled in a flame retardant plastic case and resin sealed.

All are individually hand tested, hermetically sealed and as a polypropylene metallised capacitor self healing.

This construction results in the capacitors having low ESR and low inductance and possessing high stability with respect to both temperature and frequency.

Caracteristiques :

Type:	FP-CA-AU
Capacitance:	1.0µF – 30.0µF
Dissipation Factor:	< 0.001@ 1KHz
Tolerance:	+/- 5% up to 0.1µF
Rated Voltage:	630V DC
Temperature Range:	-40 to +85C

Capacitance (µF)	D	L
1.0 - 2.2	25mm	50mm
2.2+ - 4.7	30mm	50mm
4.7+ - 6.8	30mm	70mm
6.8+ - 12.0	35mm	70mm
12.0+ - 16.0	40mm	70mm
16.0+ - 20.0	45mm	70mm
20.0+ - 30.0	45mm	100mm

Product in stock
